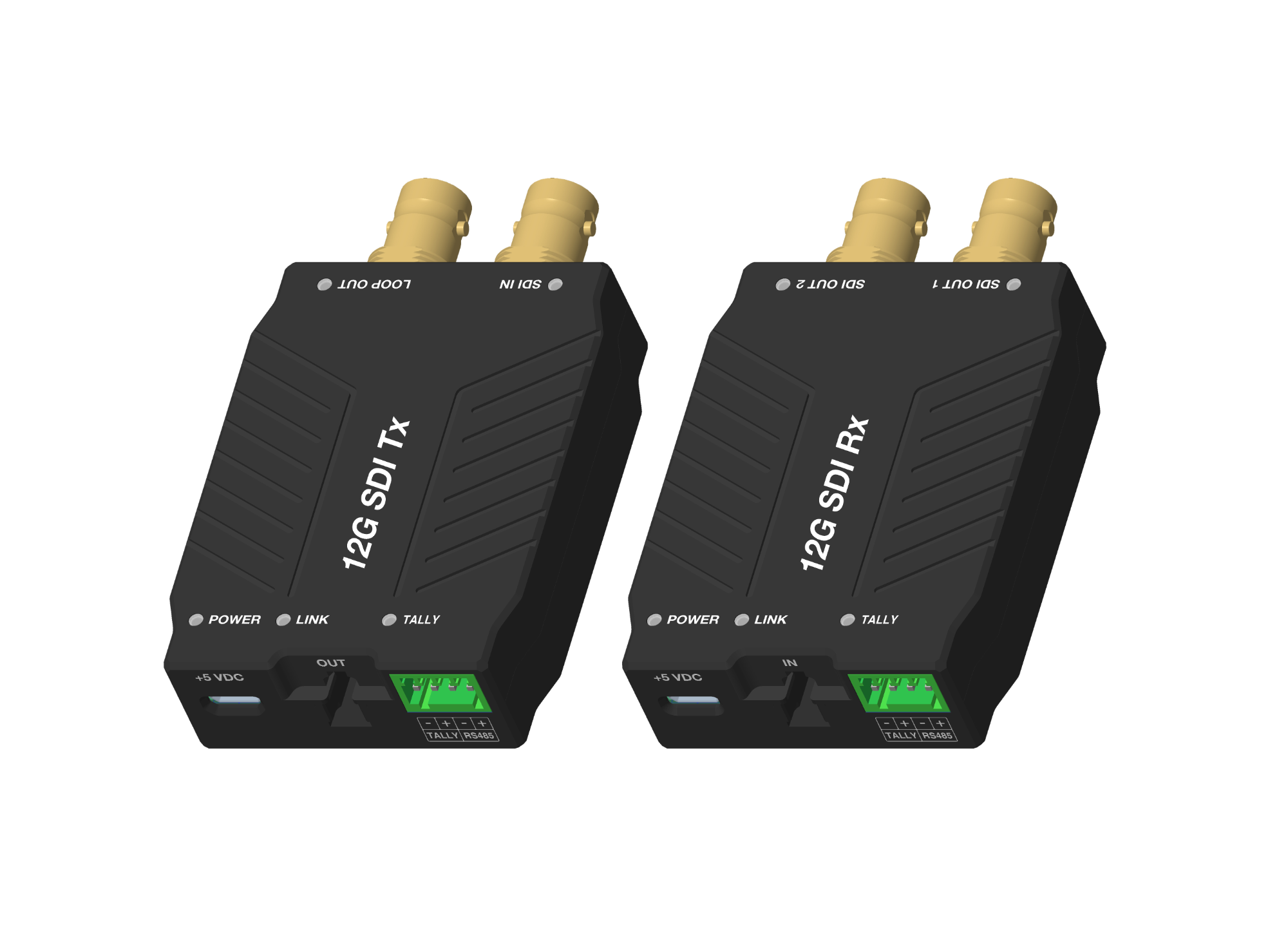

Lodalink 12G SDI Transceiver: 2 port / with SDI loop out
1.Support ST-2082-1(12G), ST-2081-1(6G), ST-424(3G), ST-292(HD) and ST-259(SD).
2.Compatible With DVB-ASI and AES10 (MADI ).
3.Integrated re-clocker Locks to SMPTE Rates of 11.88Gbps, 5.94Gbps, 2.97Gbps, 1.485Gbps or Divide-by-1.001 Sub rates and 270Mbps.
4.Directly compatible with 12G/6G/3G-SDI camera systems.
5.support HDTV 4K*2K(3840*2160@60Hz).
6.With RS485 and Tally Light pass-through transmission .
7.Up to 10km transmission distance.
8.LC fiber connector
